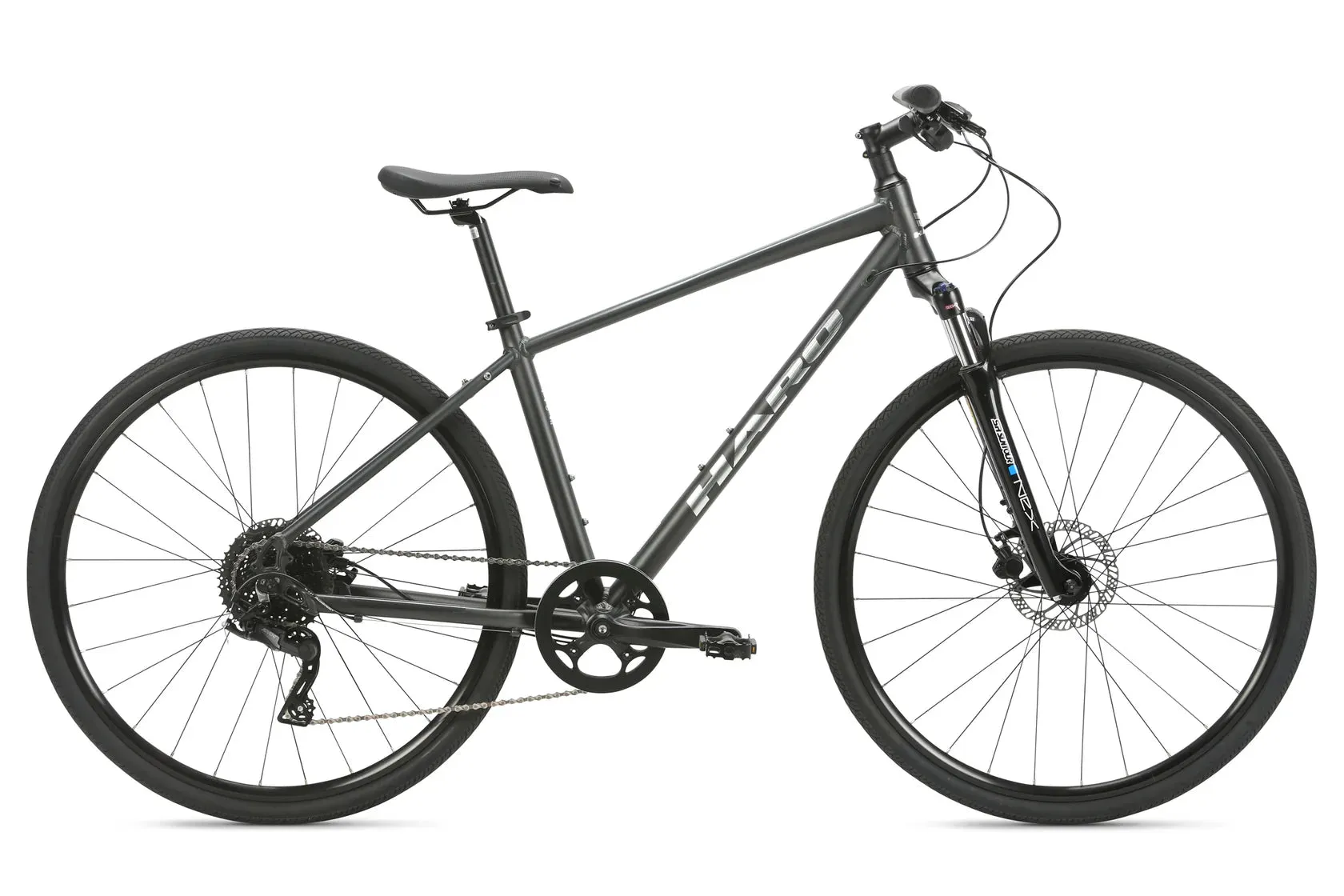

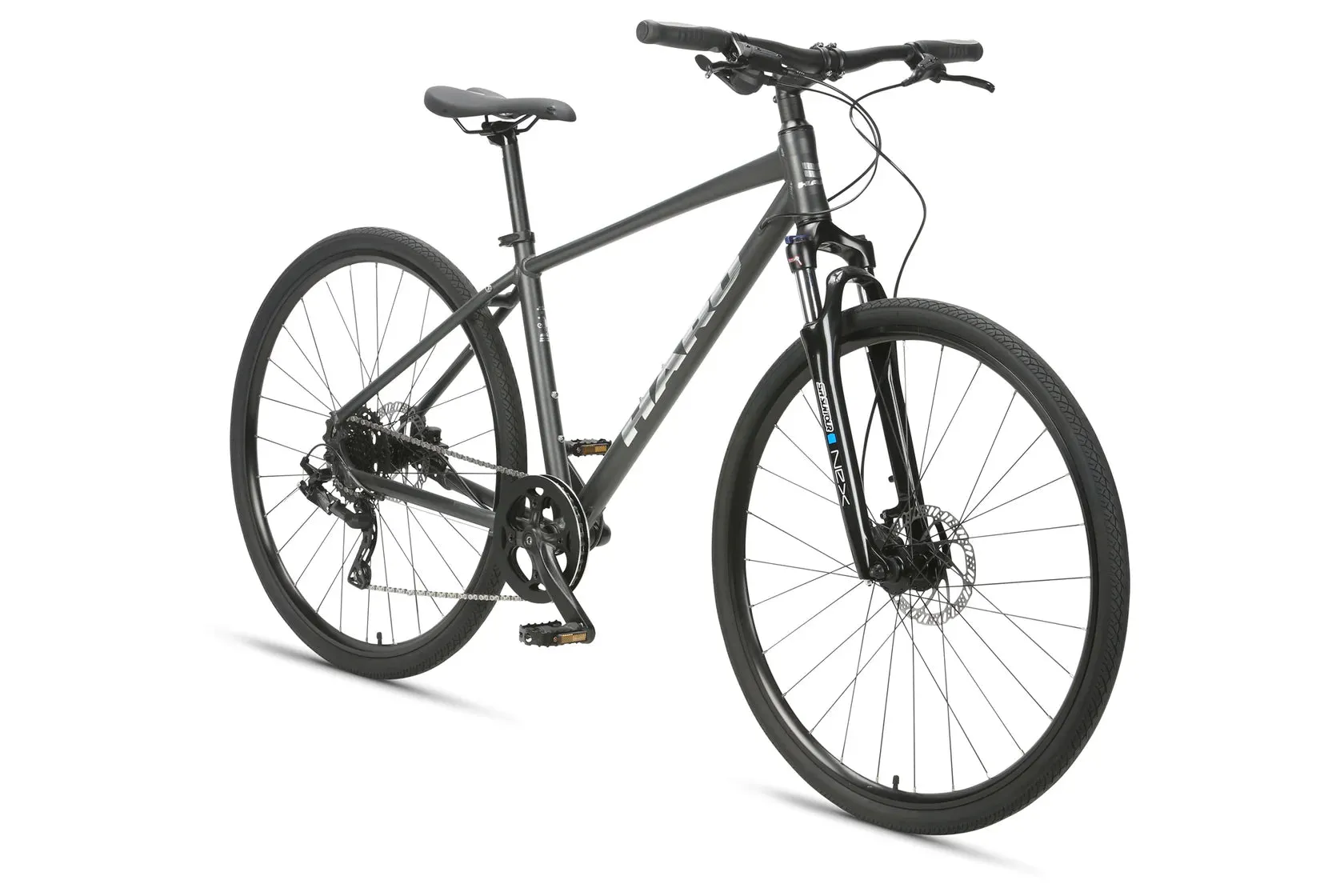

Looking for a great all-rounder bike for your everyday rides? The Haro Westlake offers a perfect balance of comfort, swiftness, and utility, and looks sharp to boot. Featuring an aluminum frame, hydraulic disc brakes, shock absorbing fork, and 9-speed drivetrain, it's ready to handle all kinds of urban terrain, and it's compatible with cargo racks and fenders, so you can maximize your convenience. Take a test ride today - the Westlake might be your sweet spot!
| FRAMESET | |
|---|---|
| Frame | 6061-T6 aluminum | Rider-tuned geometry | 68mm threaded BSA BB shell | Flat Mount |
| Fork | Suntour SF20 NEX HLO-DS | 63mm travel | Hydraulic Lockout | Post-mount |
| Frame Shock | N/A |
| Colors | Matte Charcoal |
| DRIVETRAIN | |
| Cranks | 3-pc aluminum | 42T single chainring | 104mm BCD | Dual aluminum chainguards | 170 / 175mm |
| Pedals | VP | 990S | Nylon body with steel cages | Chromoly axles |
| Chain | KMC X9 | 9-speed | NP/NP with missing link |
| Bottom Bracket | Threaded BSA 68mm BB shell | 118mm spindle | Sealed cartridge |
| Front Derailleur | N/A |
| Rear Derailleur | Microshift RD-M619M |
| Derailleur Shifter | Microshift SL-M819R-9 | 1 x 9-speed |
| Freewheel/Cassette | Wide-range | 9-speed | 11-40T |
| WHEELS | |
| Tires | Kenda Kwick Bitumen, 700 x 38c |
| Wheels/Rims | Haro 700c | 19mm inner width | 28h | Alloy double wall | Disc-brake specifc |
| Hubs | KT-68 alloy 28H | Cassette rear hub | Front & rear quick release |
| BRAKING SYSTEM | |
| Brakes | Flat mount | Mechanical disc | IS 6-bolt rotors | F: 180mm R: 160mm |
| Brake Levers | Tektro alloy hydraulic | 3-finger |
| OTHER COMPONENTS | |
| Grips/Tape | Haro | Dual-density durometer | Active tuned |
| Handlebar | Haro Alloy | 25mm rise | 31.8mm | 9° sweep | 620mm / 640mm |
| Stem | Haro Maverick Stem | Alloy | Positive Positioning | 7° rise | 15.5": 70mm; 17.5" & 19": 90mm; 21 & 23": 100mm |
| Headset | Haro Precision Plus | 1-1/8" threadless | Internal | For 50mm OD headtube |

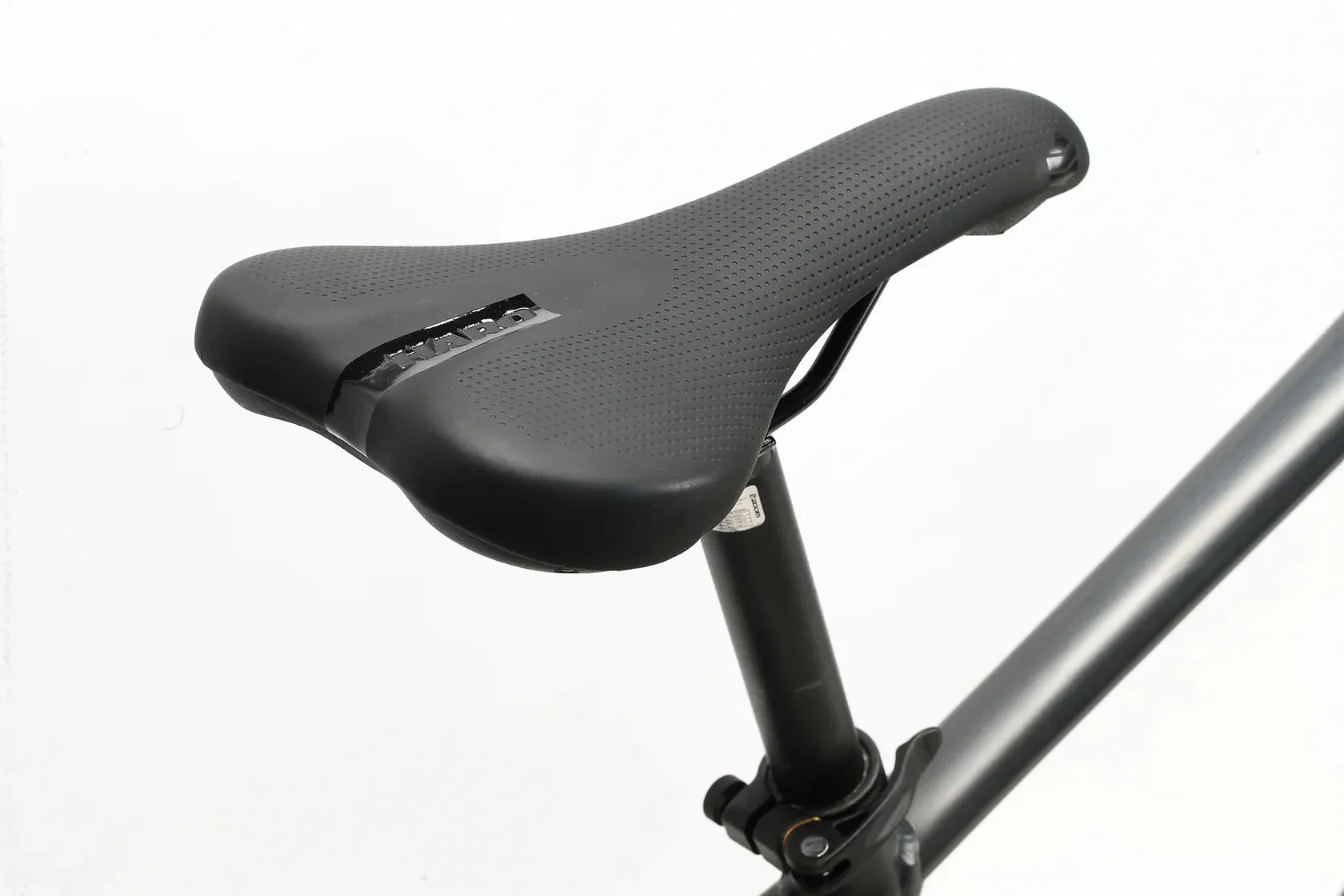

| Saddle | Haro | Dual-sport tuned padding | Weather-resistant cover |
| Seat Post | Haro aluminum | Micro-adjust | 27.2mm x 350mm | Zero-offset | 2-bolt design |
| Seat Clamp | Haro Aluminum 31.8mm Quick release |
| Extras | Rack and fender mounts |
